Model Airplane News Cover for September, 1966
Click to Enlarge

Here is what the blurb about the cover has to say:

"... Walt Burgin checks his beautiful PBY-5A radio-controlled scale machine, all surfaces exactly to scale, dihedral is correct and the landing gear retract in the same manner as in thereal plane. Retract mechanism and servo designed by him. Model weighs 14 lbs 10 ounces and is powered by two K&B's Orbit-Reed [radio control] equipment ..."

About the Model

The cover is the only photo of this amazing model. We have discussed K&B engines in our treatment of the March, 1949 cover and Orbit Electronics in our discussion of the May, 1966 cover.

About the Full Size Airplane

Consolidated PBY "Catalina"
Model Airplane News Cover Art for April, 1944
by Jo Kotula
Click to Enlarge

The Catalina was the most successful (and numerosu) flying boat in aviation history. It served extensively throughout World War II as a search and rescue plane, even (at times) delivering bombs. It began life as the Consolidated Model 28, designed by Isaac Laddon in late 1933. The prototype first flew in 1935 and had distinctive features, most notably, the parasol wing with no supporting structures. This absence of struts and bracing wires offered an immediate improvement in performance. Another new feature was the introduction of stabilising floats which retracted in flight to form the wingtips. Initial trials of the prototype left little doubt that the Navy was about to acquire a significant aircraft. PBY-1 began to enter squadron service in 1937 and by mid-1938 14 squadrons were operational.

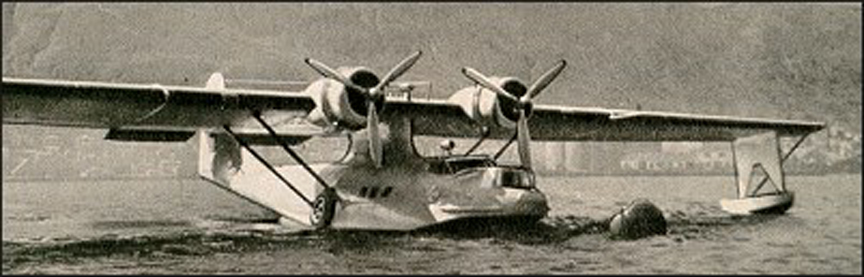

Consolidated PBY "Catalina" Flying Boat
Click to Enlarge

Initial export aircraft went to Russia, where the type was built subsequently in large numbers under the designation GST. The RAF acquired a single example for evaluation in 1939 and almost immediately ordered a batch of 50, the first of many to serve with Coastal Command. The name Catalina (adopted first by the RAF) was used later by the USN for the various versions which entered service. The type was also to serve with the RAAF, RCAF, RNZAF and the air arm of the Dutch East Indies. Many Catalinas remained in service for air-sea rescue for some years after the end of the war



Patent Diagrams for the Consolidated PBY Catalina

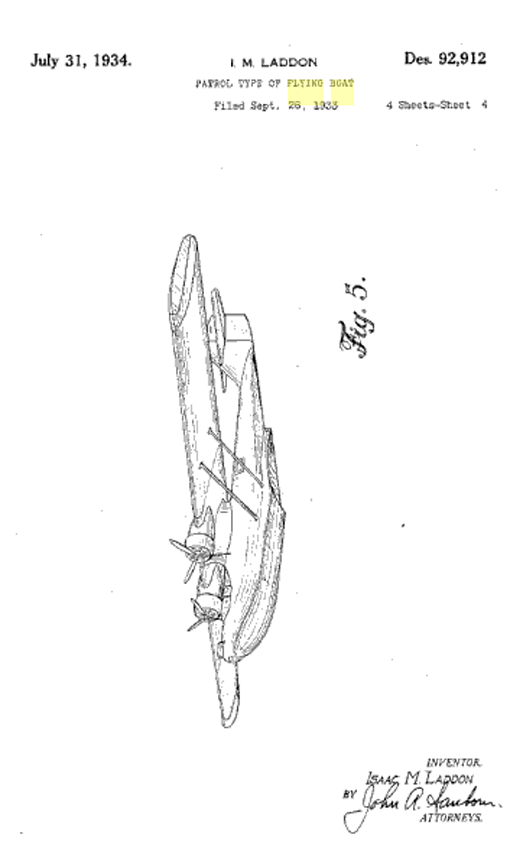

Design Patent D-92,912
Click to Enlarge
Click Here to learn how to get free patent diagrams

Here is a video that has a "walk around" and takeoff of a restored PBY:

In addition to the cover of Model Airplane News, this airplane was also featured in the WINGS "Friend or Foe" trading card series of the early 1950s

Trading card representation of the Consolidated PBY "Catalina"
Click Here to see all 200 cards in the series
Click to Enlarge

The venerable Catalina continued in service as an air rescue vehicle for some time. It appeared on the cover of Mechanix Illustrated several times. In 1943, it was used to illustrate naval gunnery and a photograph of the nose gun appeared -- this open gun position dates from the earliest days of aviation. In 1948, the Catalina's role as an air rescue vehicle was highlighted.



Catalina Cover Girl
(left) November, 1943 (right) March, 1948
Click to Enlarge

Click Here for more information about the Consolidated PBY "Catalina" Flying Boat.
